UV CURABLE SERIES

UV Inkjet Printers whose inks are UV-curable (dry when cured with UV light). The resulting prints are waterproof, embossed & vibrant. Any media material can be used in this technology.

Thunderjet AQ 1602 UV

Entry-level 1.6m RTR-UV printer with excellent performance and productivity


Please contact us for more information


Application
Description
Model
Thunderjet AQ1602 UV

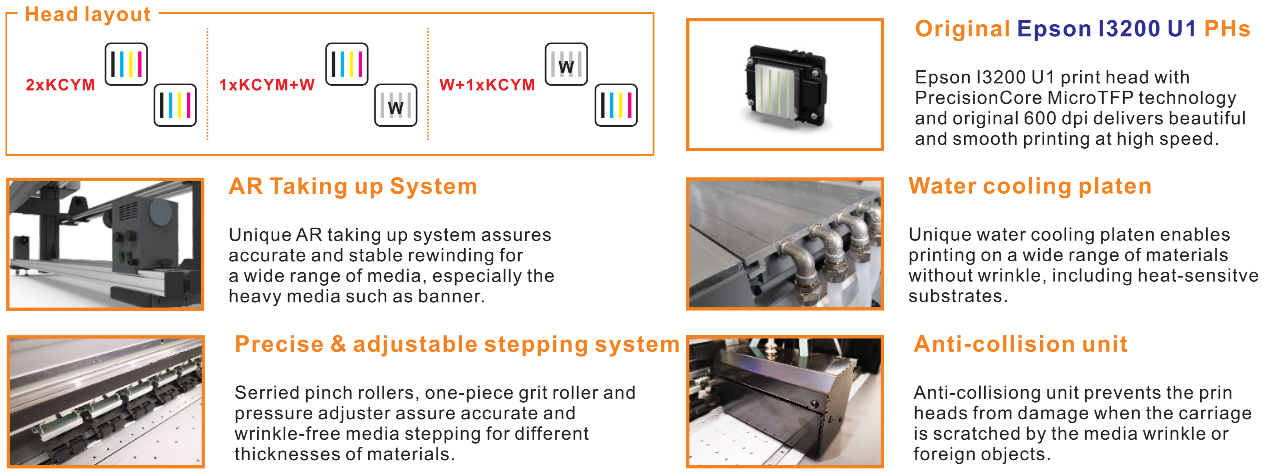

Print Head
1~2 Epson i3200 U1 print heads
Technology
Drop-On-Demond Piezo with Variable Dot
Curing System
Dual Water Cooling LED UV Lamps
Ink
UV Flexible Ink
Colors
2 x YMCK; 1 x YMCK + W; W + 1 x YMCK
Ink Supply System
Bulk ink system + White ink stirring system
Ink Tank
1000ml
Printing Width
Max. 1600mm
Media Type
Banner, Coated PP, Vinyl, Backlit textile, PVC film, PET film, etc.
Roll Diameter
Max. 300mm
Roll Weight
Max. 50kgs
Core Diameter
3'(76.2mm) or 2'(50.8mm)
Printing Speed (m2/hr)

Draft
Production
Hi-Res
DPI
720x1200
720x1200
720x1800
720x1800
1xKCYM
10.5m²/h
8.5m²/h
6m²/h
5m²/h
2xKCYM
19m²/h
17m²/h
13m²/h
11m²/h
Data Interface
External: Ethernet; Internal: Fibre Optical
Working Environment
Temp. 23℃~29℃, Humidity: 50%~80%
Software
PhotoPrint Mini UV/Onyx(Optional)...+GZ Control Console
Power
Single phase, 50Hz/AC, 220V±10%, 5A(Printer+UV Controller)
Installed Size
LxWxH 2783mm x 767mm x 1558mm
G.W/ N.W
290kgs / 190kgs
Description

Product Catalogue

Please contact us for more information! DOWNLOAD BROCHURE
